CIG > Products > Building Envelope > Cold Store

Building Envelope

Cold Store

Application

Wall

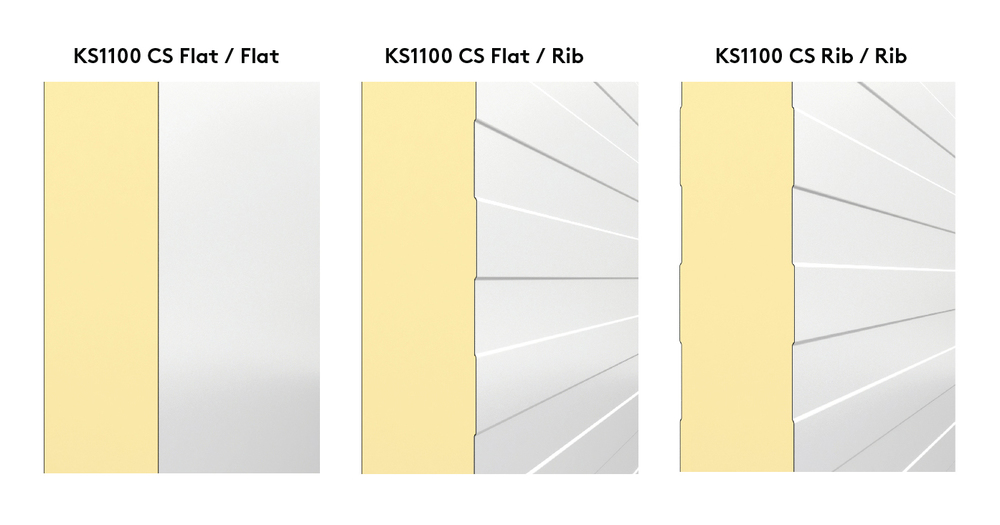

AUS Profile Dimensions

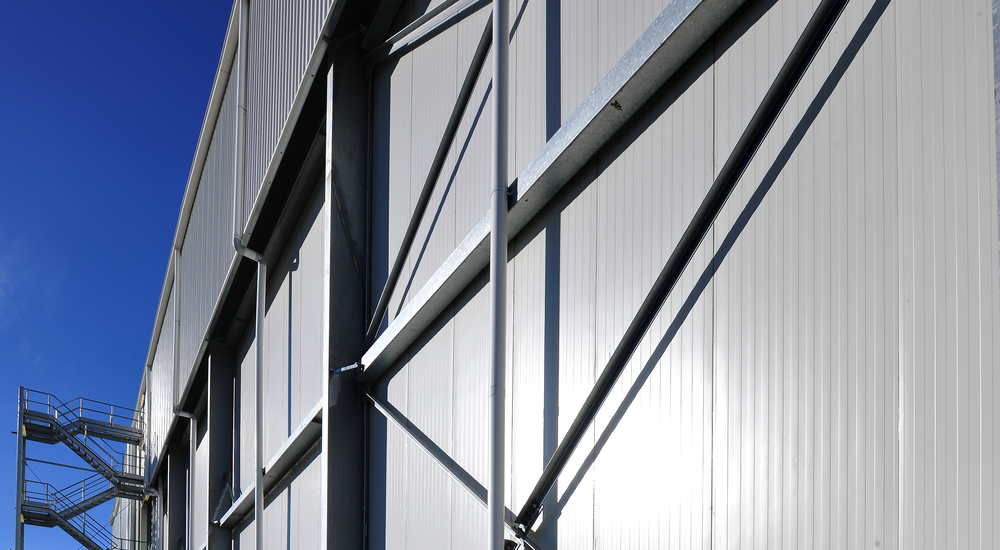

img_cs_ref1
img_cs_ref2

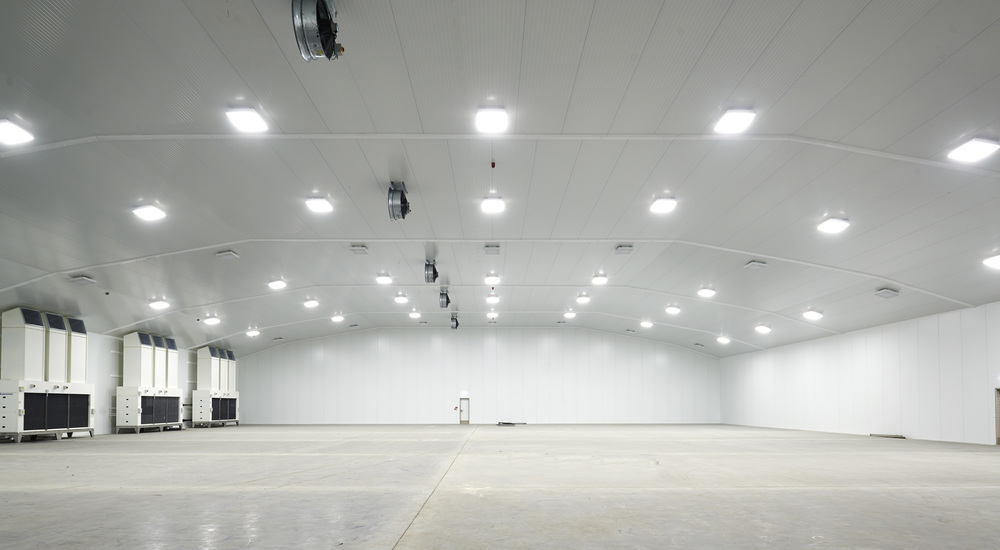

img_cs_ref3
Previous
Next

Optimise your Coldstore System

See our full range of wall profiles, system ancillaries and fabrications, learn how to maximise the performance of your wall; discover our design support services; and check out our system guarantee.

Superior Fire Performance Comes as Standard in UltraTech by Kingspan

UltraTech systems combine aesthetics with performance. The core of our panel systems is fundamental in providing superior fire and thermal performance.  Kingspan’s unique PIR core offers superior fire performance when compared to most alternative insulation materials. As a thermosetting material, it does not melt, flow or drip when exposed to fire. Rather, it forms a strong char that protects the insulating core. Fire will not spread within the panels. Kingspan FIREsafe PIR panels do not propagate fire and have been proven to greatly reduce the risk of total building loss.

HYGIENEsafe the highest level of cleanliness and durability

UltraTech systems feature HYGIENEsafe, a high performance ant-bacterial coating that actively inhibits the growth of bacteria, moulds, fungi and other microbes through the controlled release of silver ions to provide continuous, long lasting protection and  hygiene where normal cleaning may not be guaranteed.

Download

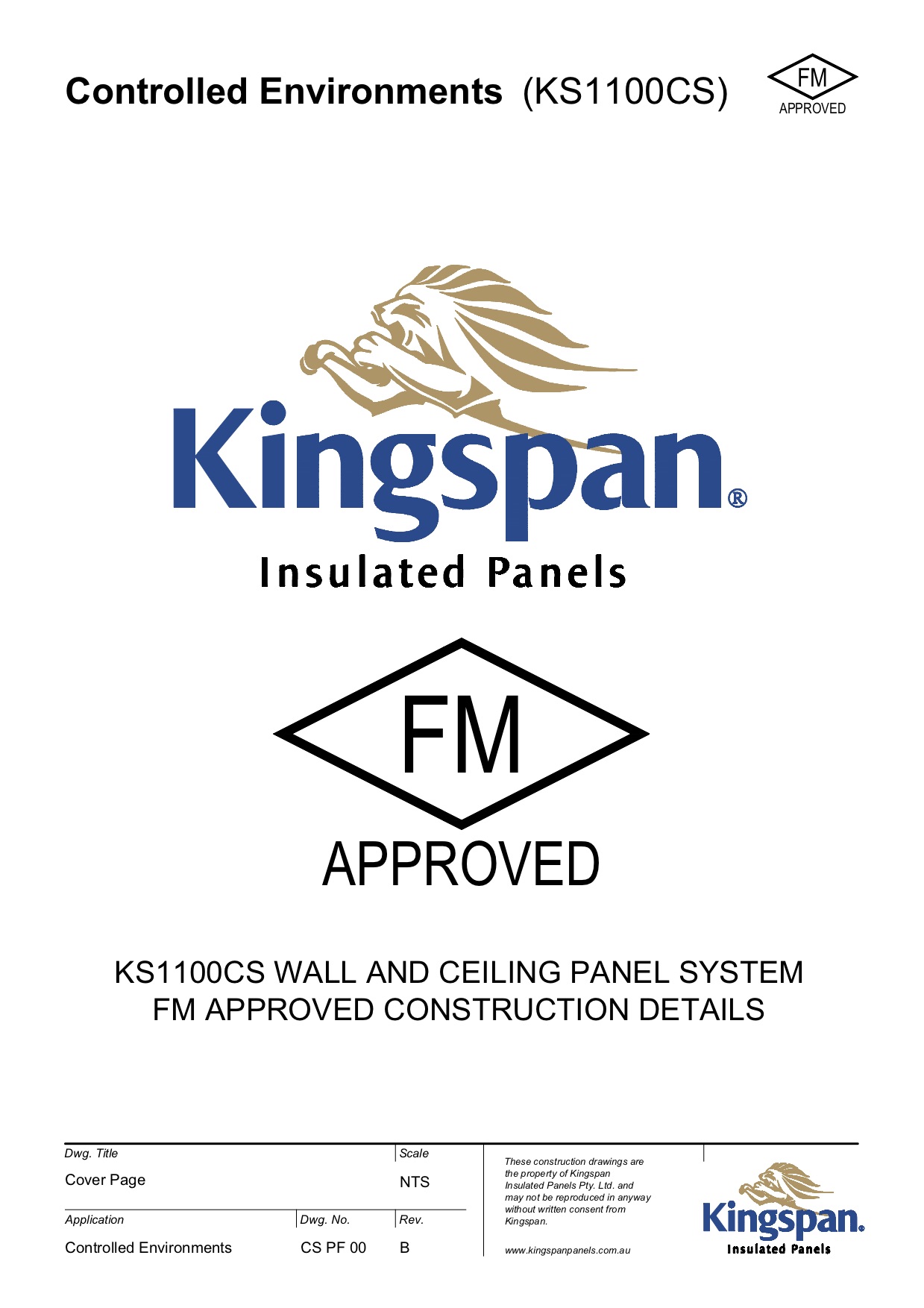

CAD Details
Download File cs_cad_details.pdf – 3 MB
Download

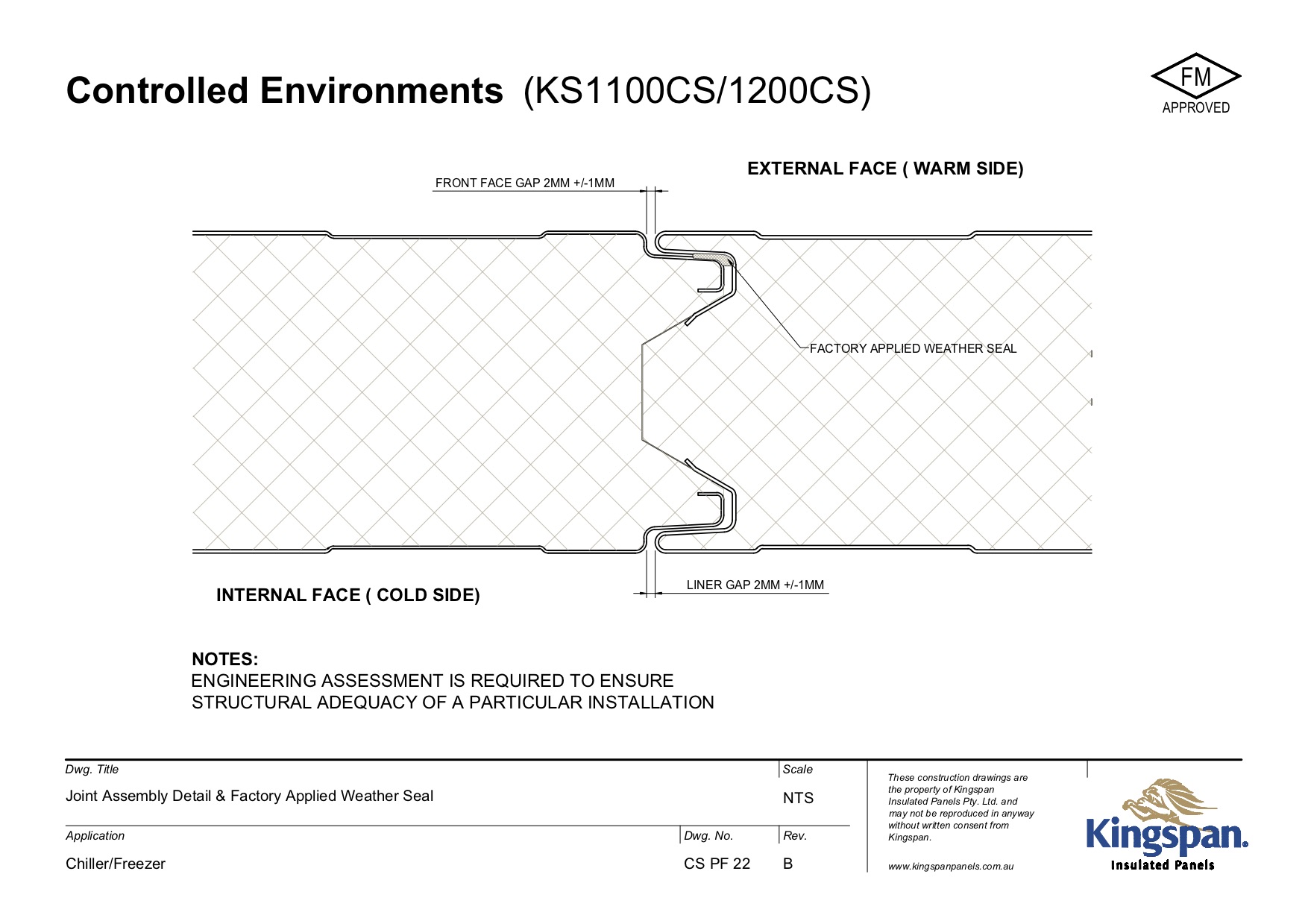

CAD Details (Internal Face)
Download File cs_faws_cad_details.pdf – 185 KB
Download

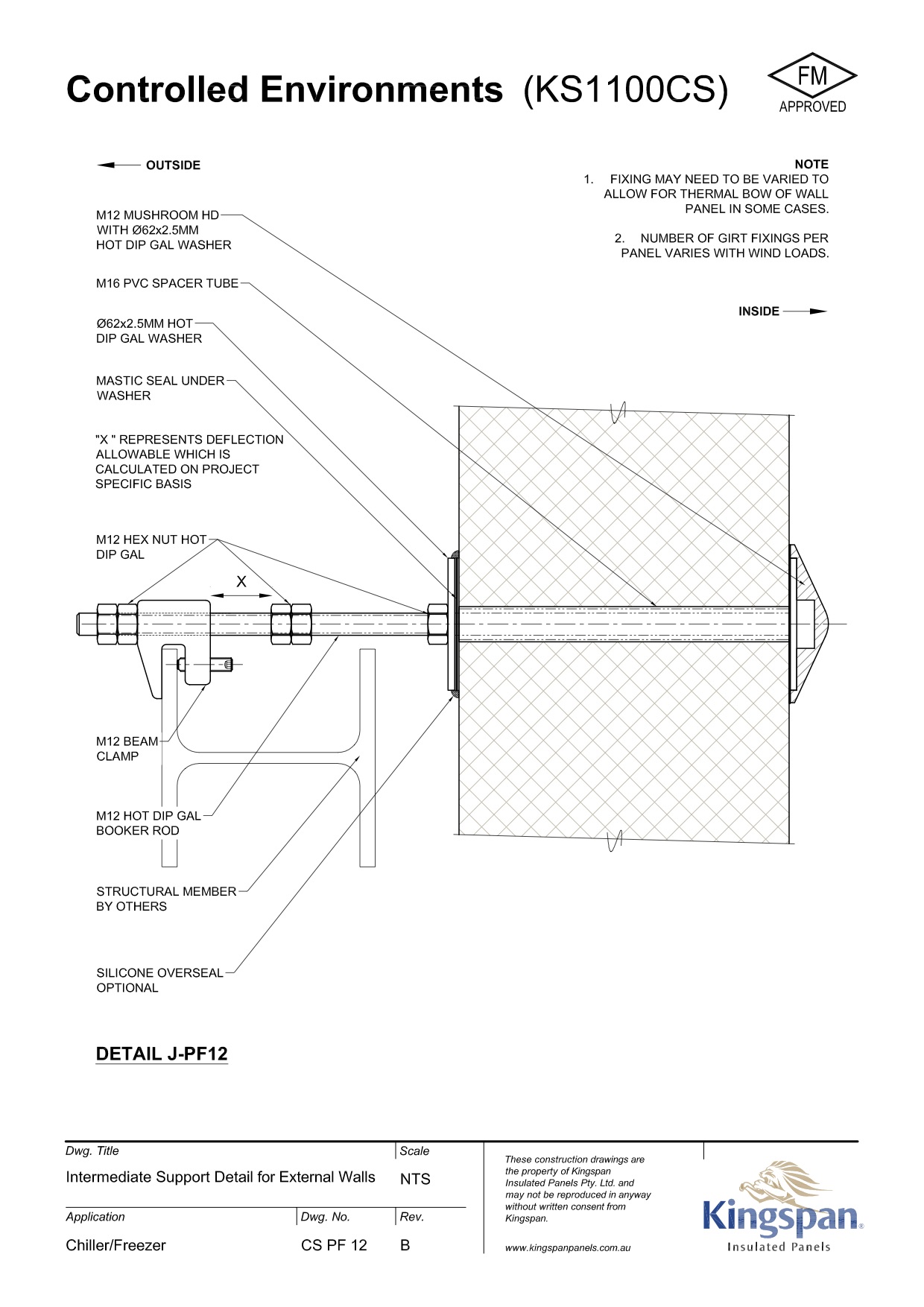

CAD Details (Toggle Clip)
Download File cs_toggle_clip_cad_details.pdf – 194 KB
